Description

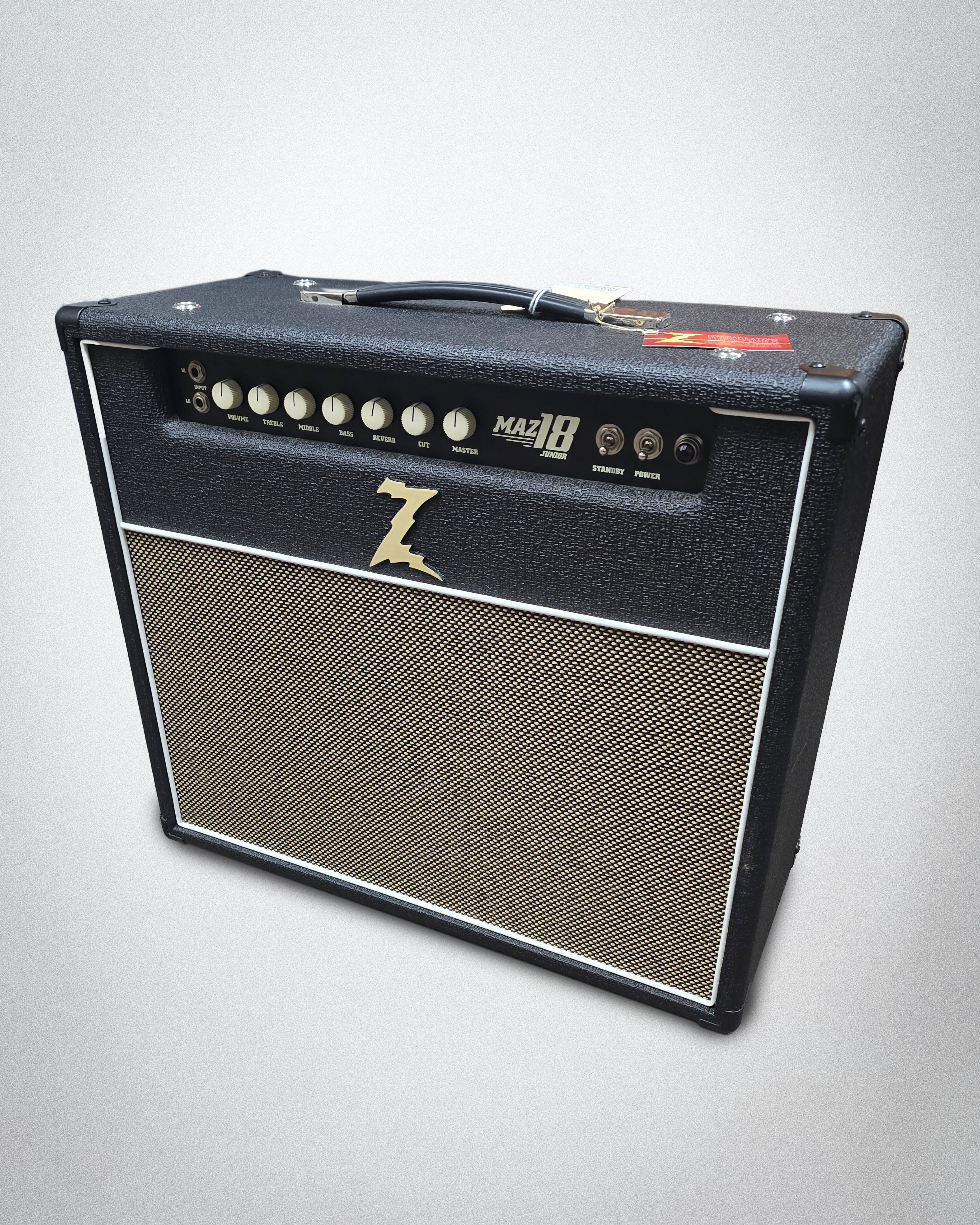

The front panel features Volume, Treble, Middle, Bass, Reverb, Cut, and Master. The back panel features a 4,8, and 16 ohm speaker out. An effects loop and our EQ bypass function is also standard. The footswitchable EQ bypass gives a great lead boost which effectively makes the 18 a 2 channel amp. The 18 is powered by a pair of cathode biased EL84s and a 5AR4 rectifier.
| Power Output | 18 Watts |
| Output Tubes | 2 - 6n14n |
| Preamp Tubes | 4 - 12AX7, 1 - 12AT7 |
| Rectifier | 1 - GZ34 |
| Controls | Volume, Treble, Mid, Bass, Cut, Master Volume, Reverb |
| Dimensions & Weight |
1-12 and 2-10 combo: 23" W, 20 1/8" H, 10" D; 47 lbs. |
(Information courtesy of Dr. Z)
